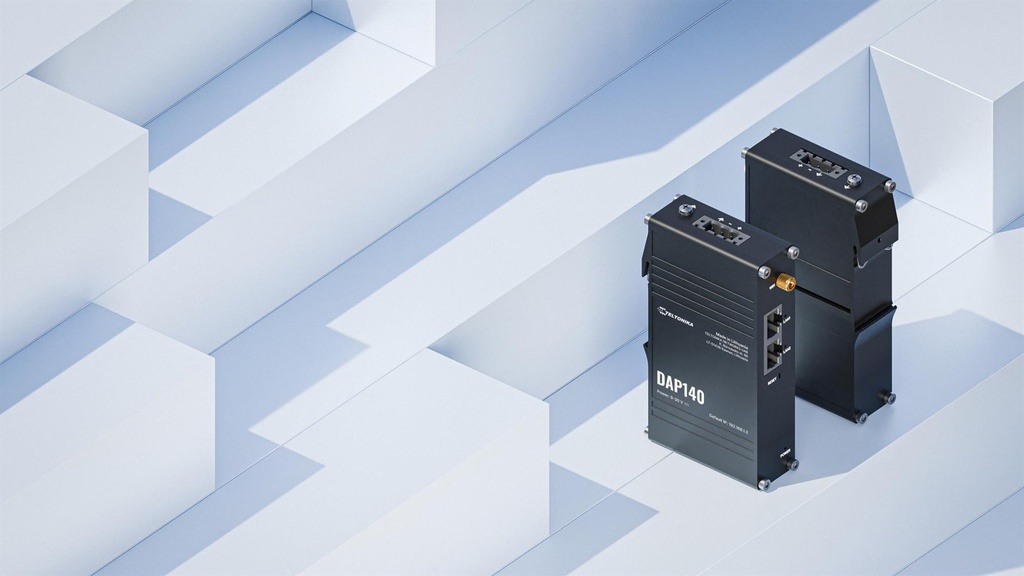

Access point | Teltonika DAP140

General

Summary	Teltonika DAP140. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: OWE, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Black
Cabling technology	10/100Base-T(X)
Fast roaming	Yes
Maximum data transfer rate	300 Mbit/s
MAC address filtering	Yes
Security algorithms	OWE/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK
DHCP client	Yes
DHCP server	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Universal Plug and Play (UPnP)	Yes
Web-based management	Yes
WAN connection	Ethernet (RJ-45)
International Protection (IP) code	IP30
LED indicators	Power
Placement	Shelf,Wall
Reset button	Yes
Operating system installed	RutOS
Quantity per pack	1 pc(s)
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	-40 - 75 °C
Model name	DAP140000000

Display

Units per Shipping Box	20

Performance

2.4 GHz	Yes
5 GHz	No
6 GHz	No
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Built-in processor	Yes
Processor frequency	580 MHz

Memory & storage

Flash memory	128 MB
Internal memory	16 MB
Storage relative humidity (H-H)	-50 - 75 %
Storage temperature (T-T)	10 - 90 °C

Connectivity

Ethernet LAN data rates	10/100/1000 Mbit/s
Networking standards	IEEE 802.11b/IEEE 802.11e/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11s/IEEE 802.11v/IEEE 802.3/IEEE 802.3az/IEEE 802.3u
Wireless meshing	Yes
VPN support	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Supported network protocols	TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)
Command-line interface (CLI)	Yes
Ethernet LAN (RJ-45) ports	2
RS-232 interface	No
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Antenna connector type	RP-SMA
Antenna type	External

Physical

63.05 €
