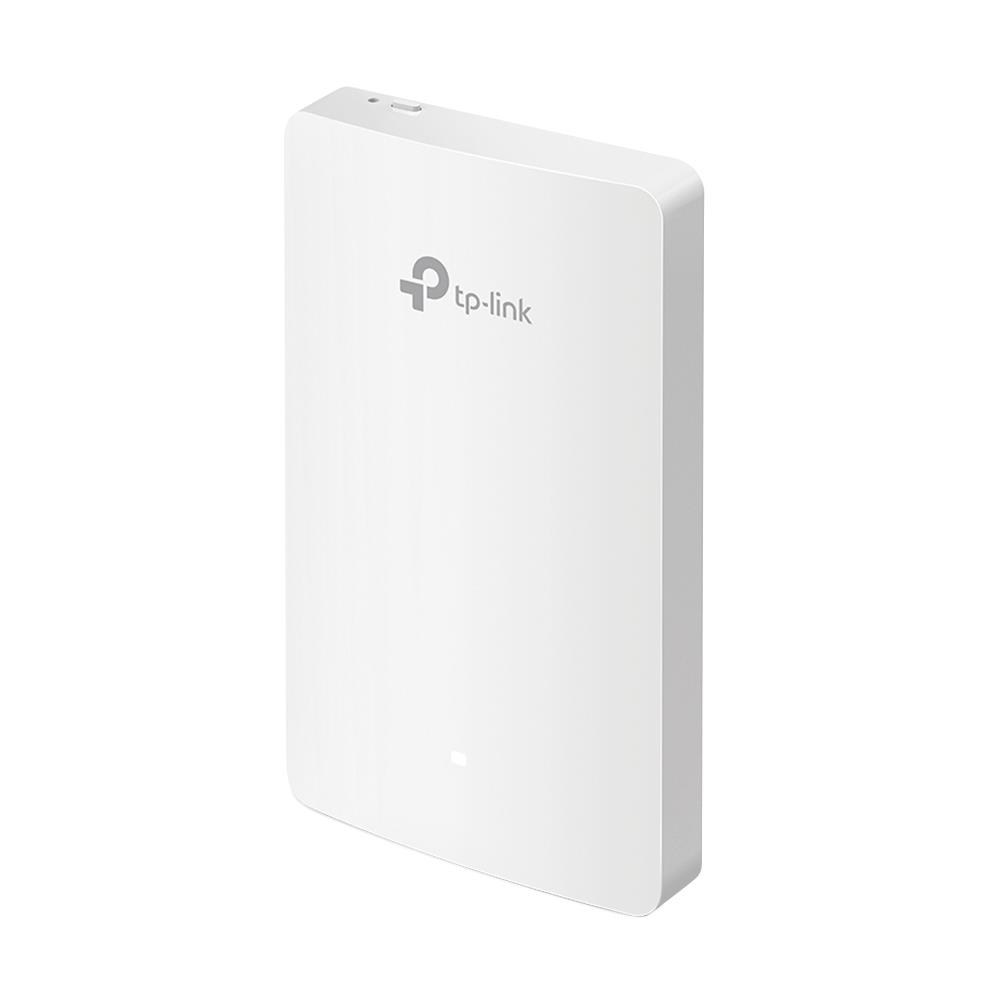

Access point | TP-Link Omada 1200 Mbps Ieee 802.11a 802.11 b/g 802.11n

General

Automatic channel scanning	Yes
Automatic channel selection	Yes
Band steering	Yes
BeamForming	Yes
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	1167 Mbit/s
MIMO	Yes
MIMO type	Multi User MIMO
Rate limiting	Yes
Transmitting power (CE)	20 - 23 dBm
Transmitting power (FCC)	21 dBm
Access Control List (ACL)	Yes
MAC address filtering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Security algorithms	128-bit WEP/152-bit WEP/64-bit WEP/802.1x RADIUS/HTTPS/SNMP/SNMPv3/SSH/WPA/WPA2/WPA2-Enterprise/WPA2-PSK/WPA-Enterprise/WPA-PSK
Service Set Identifier (SSID) features	Multiple SSIDs
Universal Plug and Play (UPnP)	Yes
Syslog	Yes
Web-based management	Yes
WAN connection	Ethernet (RJ-45)
LED indicators	LAN/Power/Status/WAN/WLAN
Placement	Wall
Reset button	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Quick start guide	Yes
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 40 °C
Sustainability compliance	Yes
Series	Omada
Model name	EAP235-Wall

Performance

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s

Memory & storage

Cable lock slot	Yes
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C

Battery & charging

Power consumption (typical)	24.4 W

Connectivity

Ethernet LAN data rates	10/100/1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Quality of Service (QoS) support	Yes
Virtual LAN features	Port-based VLAN/VLAN mapping
VLAN support	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Wireless isolation	Yes
Number of SSID supported	16
Ethernet LAN (RJ-45) ports	4
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE/Passive PoE
Antenna features	Integrated antenna
Antenna gain level (max)	4 dBi
Antenna type	Internal
Antennas quantity	2

Physical

66.60 €
