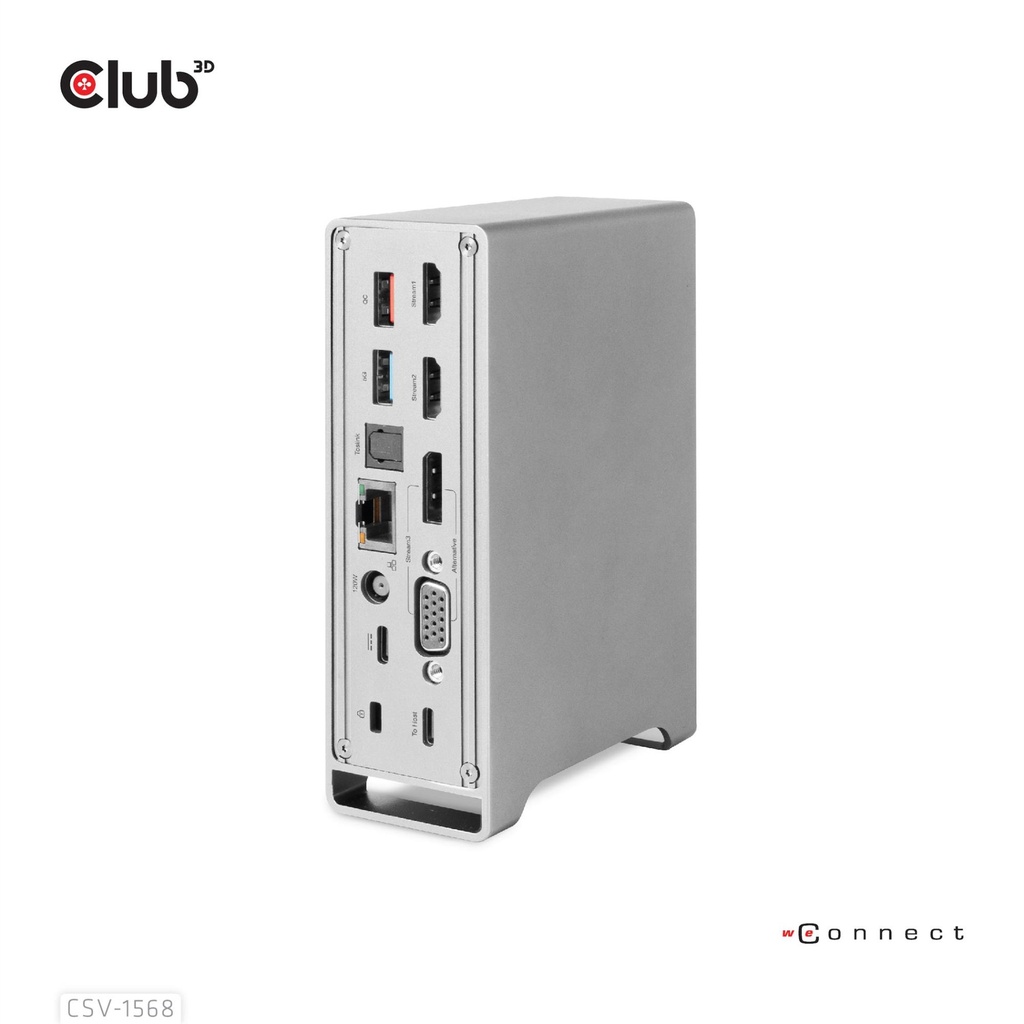

Docking station | Club3d CSV-1568 NB ACC Docking Station Usb-c 120W

General

Summary	CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm
Connectivity technology	Docking
DC-in jack	Yes
HDCP	Yes
HDCP version	1.4/2.2
Headphone connectivity	3.5 mm
Brand compatibility	Apple
Card reader integrated	Yes
Certification	Meets ROHS, FCC, and CE EMI requirements
Compatibility	Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer
Data transfer rate	16.2 Gbit/s
Key lock	Yes
Plug and Play	Yes
Power consumption (max)	120 W
Power source type	DC
Quantity per pack	1 pc(s)
AC adapter included	Yes
Quick start guide	Yes
Stand included	Yes
Harmonized System (HS) code	8473 3020
Special features	In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide
Model	CSV-1568

Display

DisplayPort version	1.4
DisplayPorts quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
Maximum refresh rate	60 Hz
Units per Pallet	0
Units per Shipping Box	1

Battery & charging

Connectivity

Combo headphone/mic port	Yes
HDMI ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Thunderbolt 3 Power Delivery	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
VGA (D-Sub) ports quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
High Dynamic Range (HDR) supported	Yes
Power connector	USB Type-C
Mac operating systems supported	Yes
Windows operating systems supported	Yes

Physical

Product colour	Metallic
Power cable length	1 m
Depth	90 mm
Height	44 mm
Weight	563 g
Width	139 mm
Paper/cardboard packaging weight	168 g
Plastic packaging weight	5 g
Total paper/cardboard packaging weight	0 g
Total plastic packaging weight	0 g

160.32 €
