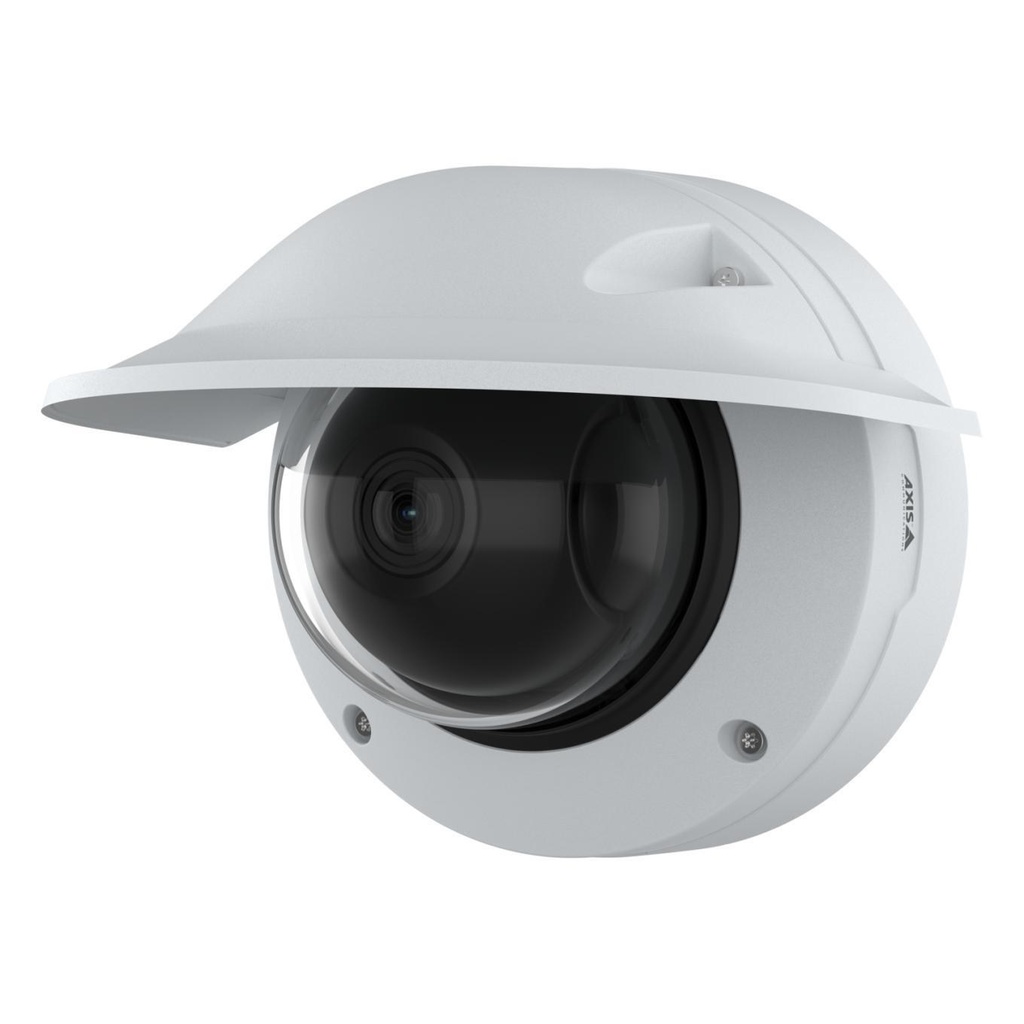

IP camera | Axis Q3628-VE Dome

General

IK code	IK10
International Protection (IP) code	IP66
Connectivity technology	Wired
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Preset points	Yes
PTZ control	Yes
PTZ modes	Digital PTZ
Type	IP security camera
Minimum illumination	0.07 lx
Number of sensors	1
Progressive scan	Yes
Sensor type	CMOS
Maximum aperture number	2.9
Minimum aperture number	1.6
Night vision	Yes
Image quality adjustment	Brightness/Contrast/Saturation/Sharpness
Image stabilizer	Yes
Privacy masking	Yes
Text caption overlay	Yes
Video compression formats	H.264/H.265/M-JPEG
Video streaming	Yes
Audio detection	Yes
Audio system	2-way
Audio system full duplex	Yes
Sample rate	48 kHz
Voice codecs	AGC
Card reader integrated	Yes
DC-in jack	Yes
Microphone in	Yes
Alert notification type	E-mail
Digest authentication	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Password protection	Yes
Pixel counter	Yes
Video motion detection	Yes
Sustainability compliance	Yes
Manual	Yes
Screws included	Yes
Doesn't contain	BFR/PVC
Model	Q3628-VE

Display

Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	1280 x 800/160 x 120/160 x 90/2880 x 2160/3840 x 2160

Performance

Processor model	ARTPEC-8

Memory & storage

Frame rate	30 fps
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
Flash memory	8192 MB
Internal memory	2048 MB

Camera

Camera pan control	Yes
Camera shutter speed	1/66500 - 2 s
Camera tilt control	Yes
Lens viewing angle, horizontal	103 - 48 °
Lens viewing angle, vertical	56.4 - 27.4 °
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB
Total megapixels	8 MP
Number of cameras	1

Battery & charging

Connectivity

Languages support	Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
Number of languages	19
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Pan range	0 - 190 °
Tilt angle range	-8 - 75 °
Focal length range	6.2-12.9 mm
Audio formats supported	AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS
Bluetooth	No
Ethernet LAN	Yes
Networking standards	IEEE 802.3at
Quality of Service (QoS) support	Yes
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Wi-Fi	No
Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes

Physical

1,892.55 €
