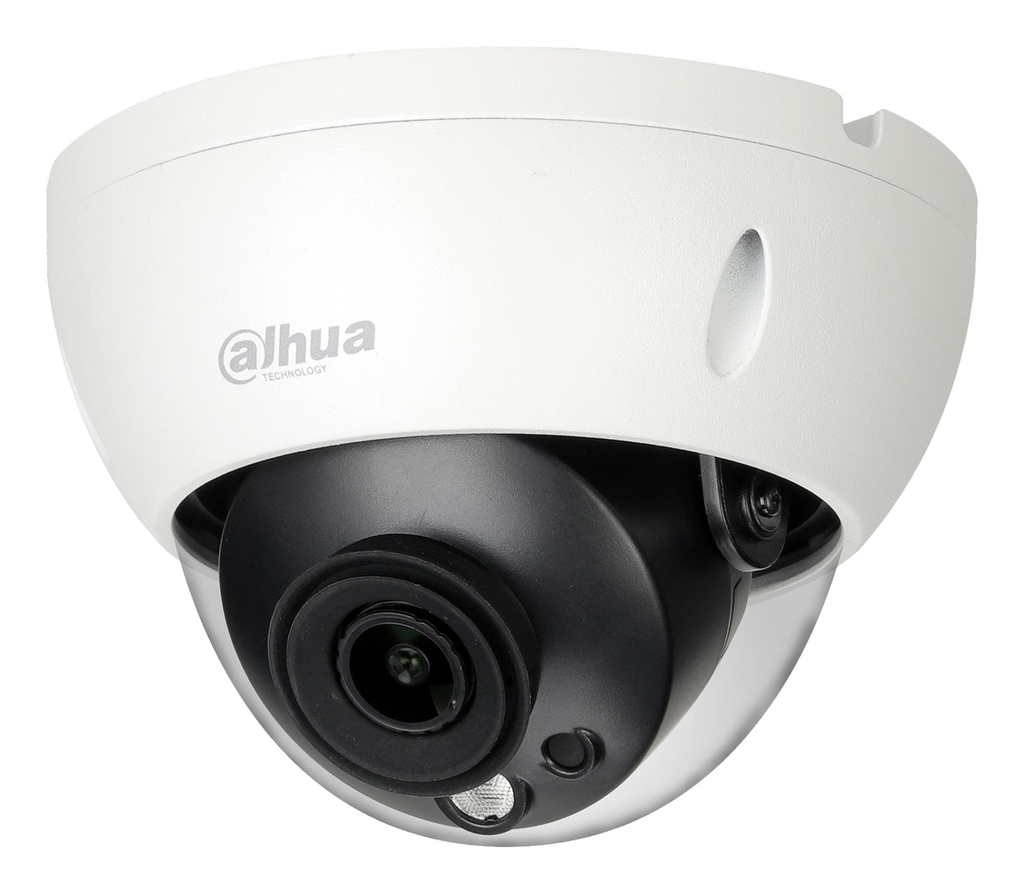

IP camera | Dahua 5MP IR Dome

IP camera | Dahua 5MP IR Dome

Specifikācija

General
SummaryDahua Technology Pro HDBW5541R-ASE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.002 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 98°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2688 x 1520 pixels. Detect distance: 30 m, Normal focusing range: 2.5 - 6 m, Fixed focal length: 2.8 mm
Fog proofYes
IK codeIK10
International Protection (IP) codeIP67
Alarm input/outputYes
Connectivity technologyWired
People counting functionYes
Plug and PlayYes
TypeIP security camera
Adjustment shutter speedAuto/Manual
Angle of rotation355 °
Auto flipYes
Minimum illumination0.002 lx
Pan range0 - 355 °
Tilt angle range0 - 65 °
Number of effective pixels (H x V)2688 x 1520 pixels
Number of sensors1
Progressive scanYes
Sensor typeCMOS
Auto focusYes
Detect distance30 m
Fixed focusYes
Maximum aperture number1.6
Normal focusing range2.5 - 6 m
LED typeIR
Night visionYes
Night vision distance80 m
Number of illumination LEDs3
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps- 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes
Video compression formatsH.264/H.264+/H.265/H.265 Pro/H.265 Pro+/H.265+
Video intelligence analyticYes
Video streamingYes
Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsG.711a/G.711alaw/G.723/G.723.1/G.726/G.726-32
Number of users20 user(s)
Streaming methodMulticast/Unicast
Card reader integratedYes
DC-in jackYes
Active tampering alarmYes
MirrorYes
Motion sensorYes
Privacy protectionYes
Video motion detectionYes
Management softwareSmart PSS, DSS, DMSS
Web browserYes
Web-based managementYes
Power consumption (typical)12.4 W
Power source typeAC,DC,PoE
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-30 - 60 °C
ManualYes
ModelIPC-HDBW5541R-ASE-OPAT
Display
Lens viewing angle, diagonal129 °
Lens viewing angle, horizontal98 °
Lens viewing angle, vertical71 °
Maximum resolution2688 x 1520 pixels
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 576
Units per Pallet0
Units per Shipping Box20
Memory & storage
Frame rate30 fps
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Storage temperature (T-T)-30 - 60 °C
Camera
Camera pan controlYes
Camera shutter speed1/3 - 1/100000 s
Camera shutter typeElectronic
Camera tilt controlYes
Number of lenses1
Total megapixels5 MP
Number of cameras1
Battery & charging
AC input voltage24 V
DC output voltage12
Connectivity
Placement supportedIndoor & outdoor
White balanceAuto/Lamp/Manual/Natural/Outdoor
Supported video modes1080p/720p
Audio formats supportedAAC
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.1x
Quality of Service (QoS) supportYes
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;SNMP
Wi-FiNo
Ethernet LAN (RJ-45) ports1
Mobile operating systems supportedAndroid/iOS
Windows operating systems supportedYes
Physical
Form factorDome
Housing materialMetal
Mounting typeCeiling/wall
Product colourWhite
Optical sensor size1/2.7 "
Fixed focal length2.8 mm
Depth159 mm
Height117.9 mm
Weight950 g
115.69 € 115.69 €

  • Condition
  • Pieejamība
  • Brand
Add to cart
Add to wishlist

Specifications

Condition Brand new
Pieejamība Pieejams
Brand Dahua
