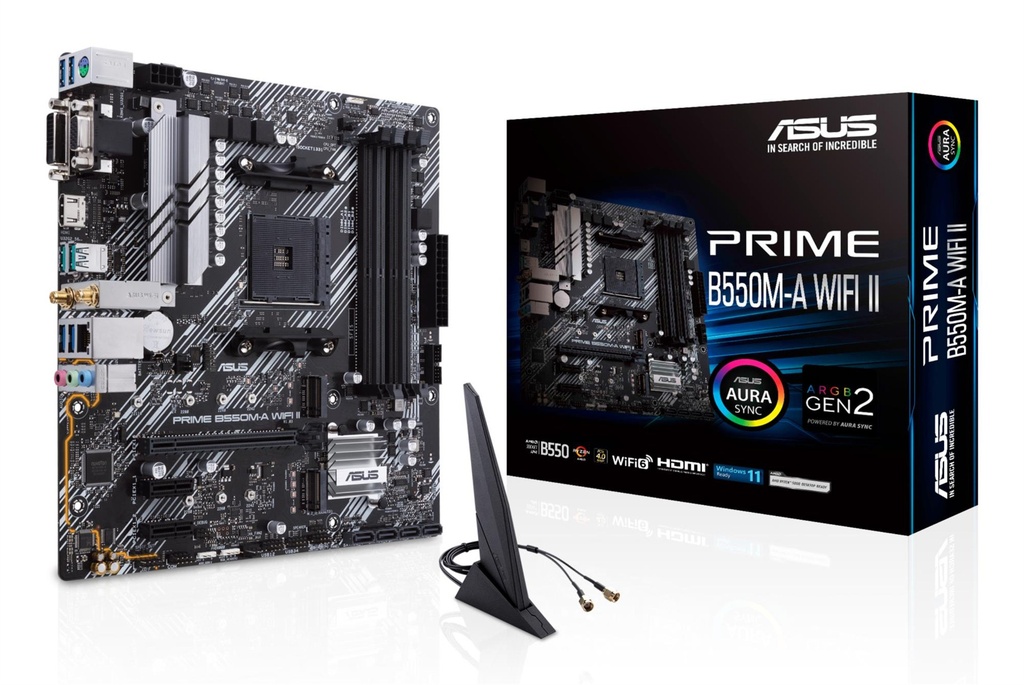

Mainboard | ASUS AMD B550 SAM4 Memory DDR4 PRIMEB550M-AWIFIII

General

Audio output channels	7.1 channels
Component for	PC
ECC сompatibility	ECC
RAID levels	0/1/10
RGB LED pin header	Yes
Headphone outputs	1
Microphone in	Yes
1st M.2 highest PCI Express generation	4.0
2nd M.2 highest PCI Express generation	3.0
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Cables included	SATA
Drivers included	Yes

Display

Front panel audio connector	Yes

Performance

Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 3000 Series/AMD Ryzen 5000 Series
Processor manufacturer	AMD
Processor socket	Socket AM4
Supported processor sockets	Socket AM4
On-board graphics card	No
CPU fan connector	Yes

Memory & storage

Maximum internal memory	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speeds	2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800/4866 MHz
Supported memory types	DDR4-SDRAM
Unbuffered memory	Yes
Number of storage drives supported	6
Supported storage drive interfaces	M.2,PCI Express 3.0,PCI Express 4.0,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	256 Mbit

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11 x64
RAID support	Yes
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	2
Number of COM connectors	1
Number of EATX power connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
DVI-D ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
PS/2 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB connector type	USB Type-A
VGA (D-Sub) ports quantity	1
WiFi-AP antenna jack	1
Bluetooth	Yes
Bluetooth version	5.2
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wake-on-LAN ready	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Physical

84.45 €
