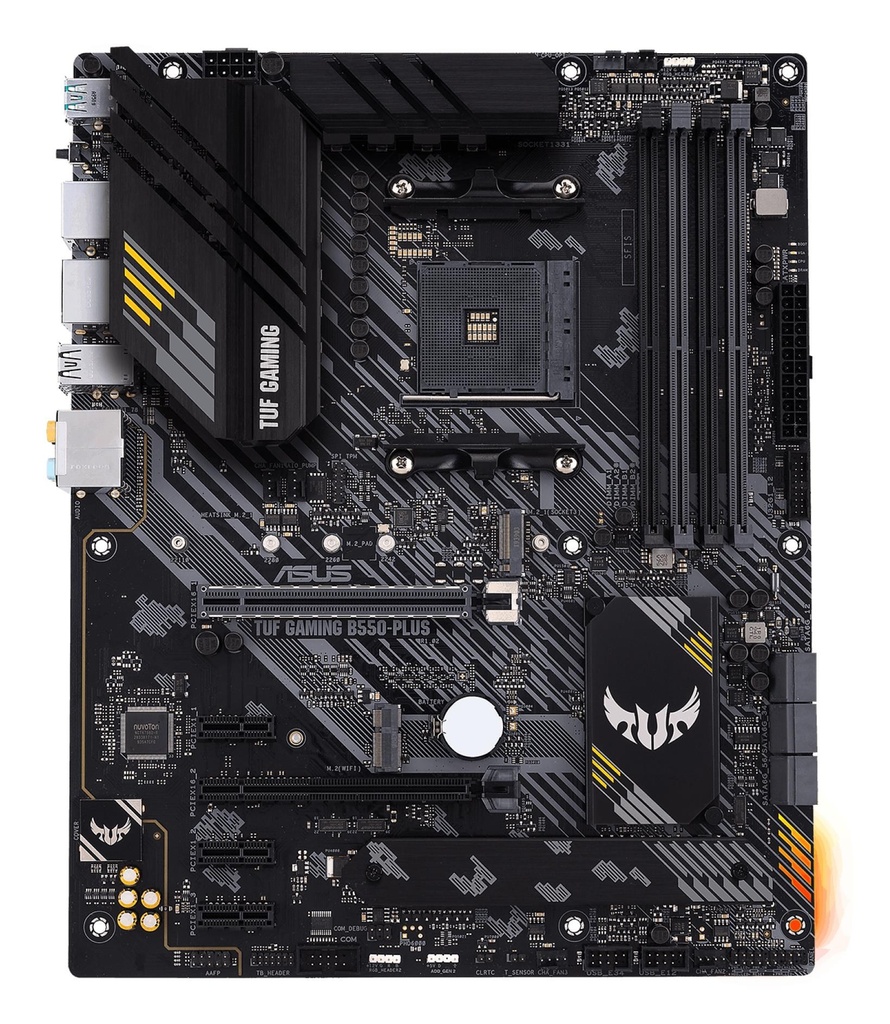

Mainboard | ASUS AMD B550 SAM4 Memory DDR4 TUFGAMINGB550-PLUS

General

Display

Front panel audio connector	Yes
DisplayPorts quantity	1

Performance

Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 3000 Series
Maximum number of SMP processors	1
Processor manufacturer	AMD
Processor socket	Socket AM4
Supported processor sockets	Socket AM4
CPU fan connector	Yes

Memory & storage

Maximum internal memory	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speeds	2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4600 MHz
Supported memory types	DDR4-SDRAM
Supported storage drive interfaces	M.2,SATA
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	3
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	256 Mbit

Connectivity

Windows operating systems supported	Windows 10 x64
Parallel processing technology support	2-Way CrossFireX
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	3
Number of SATA connectors	4
Number of SATA III connectors	6
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
PS/2 ports quantity	1
S/PDIF out port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8125B
Wi-Fi	No

Physical

100.28 €

Condition	Brand new
Brand	ASUS
