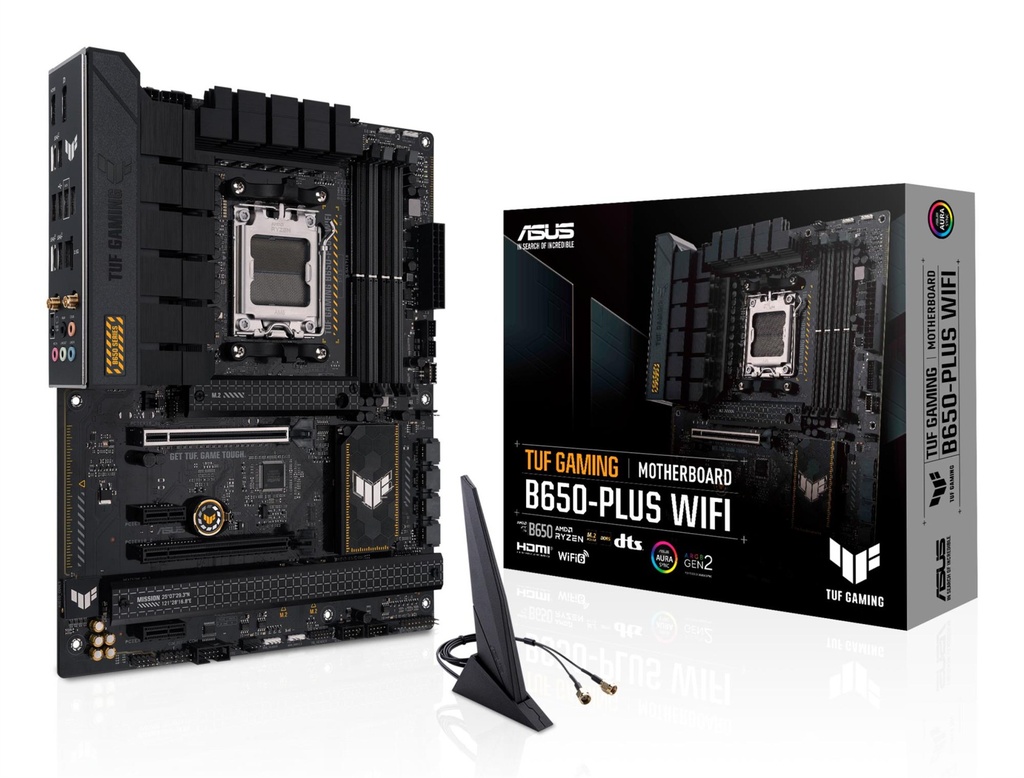

Mainboard | ASUS AMD B650 SAM5 Memory DDR5 TUFGAMINGB650-PLUSWIFI

General

Display

Front panel audio connector	Yes
DisplayPorts quantity	1

Performance

Motherboard chipset	AMD B650
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 7000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
On-board graphics card	No
CPU fan connector	Yes

Memory & storage

Maximum internal memory	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speeds	4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of storage drives supported	7
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	3
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	2
BIOS memory size	256 Mbit

Connectivity

RAID support	Yes
Parallel processing technology support	Not supported
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	4
Number of COM connectors	1
Number of SATA III connectors	4
Thunderbolt headers	1
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
S/PDIF out port	No
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Bluetooth	Yes
Bluetooth version	5.2
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Physical

159.41 €
