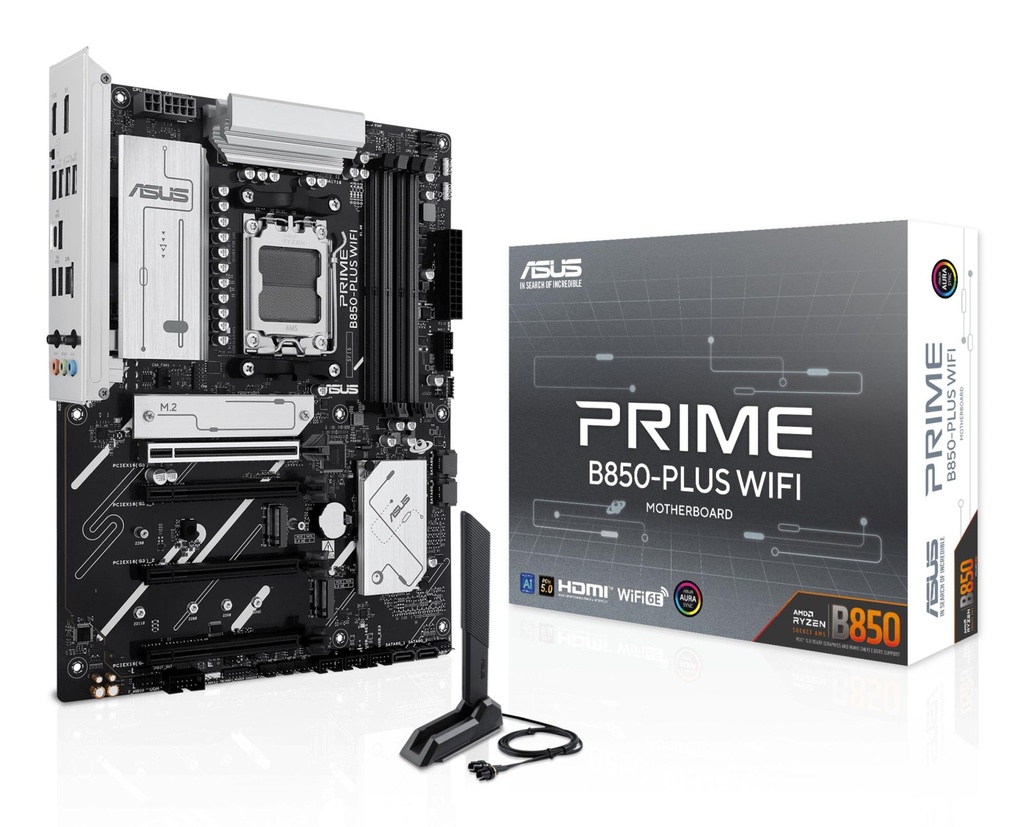

Mainboard | ASUS AMD B850 SAM5 Memory DDR5 PRIMEB850-PLUSWIFI

General

Audio output channels	7.1 channels
Compatible operating systems	Windows 11, Windows 10 64-bit
Component for	PC
ECC сompatibility	ECC & Non-ECC
RAID levels	0/1/10/5
Microphone in	Yes
BIOS type	UEFI AMI
Model	PRIME B850-PLUS WIFI

Display

Front panel audio connector	Yes
DisplayPorts quantity	1

Performance

Motherboard chipset	AMD B850
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
On-board graphics card	No
CPU fan connector	Yes
Number of CPU fan connectors	1

Memory & storage

Maximum internal memory	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	8000 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	7
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	3
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	256 Mbit

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11
RAID support	Yes
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	4
Number of COM connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
Thunderbolt headers	1
TPM connector	Yes
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Bluetooth	Yes
Bluetooth version	5.3
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes

Physical

152.88 €
