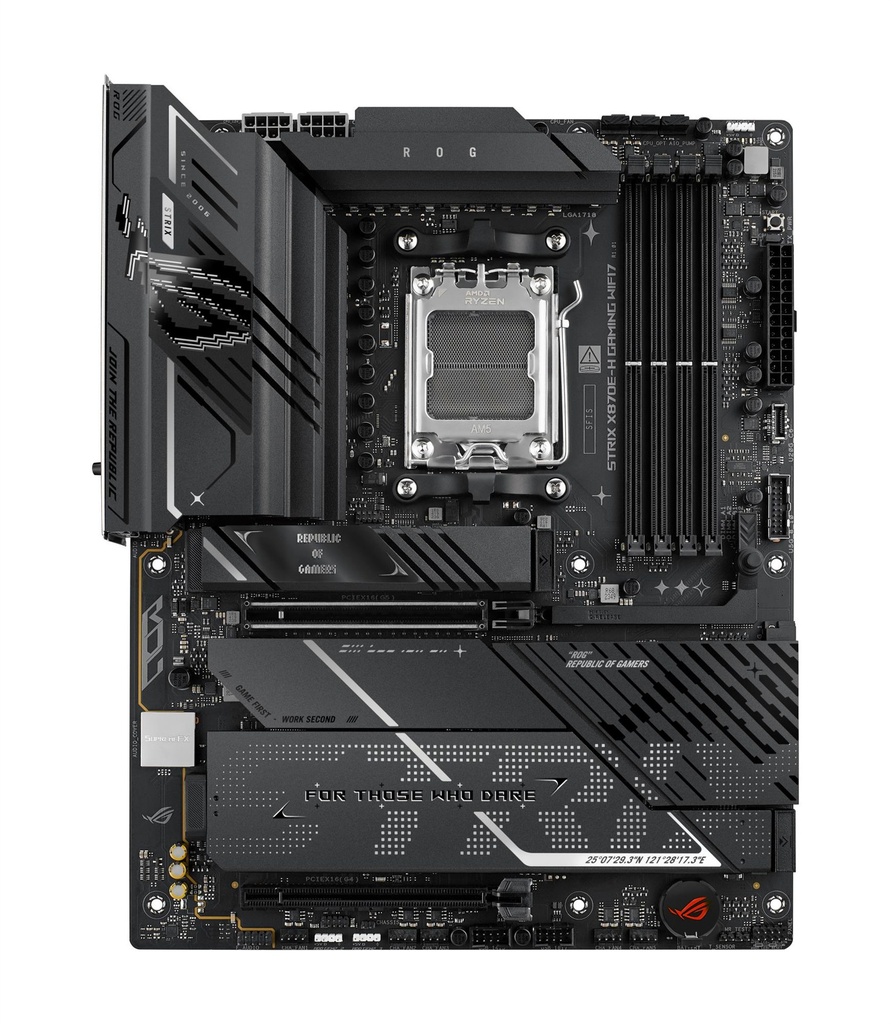

Mainboard | ASUS AMD X870E SAM5 Memory DDR5 STRIXX870E-HGAMWIFI7

General

Audio chip	Realtek ALC1220P
Audio output channels	7.1 channels
Component for	PC
ECC сompatibility	Non-ECC
RAID levels	0/1/10/5
Number of RGB LED pin headers	3
Number of temperature sensor headers	1
RGB LED pin header	Yes
Microphone in	Yes
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	5.0
3rd M.2 highest PCI Express generation	4.0
4th M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
Cables included	SATA
Model	ROG STRIX X870E-H GAMING WIFI7

Display

Front panel audio connector	Yes
Front panel connector	Yes

Performance

Motherboard chipset	AMD X870E
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
On-board graphics card	No
CPU fan connector	Yes

Memory & storage

Maximum internal memory	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	8
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	4
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS memory size	256 Mbit

Connectivity

Windows operating systems supported	Windows 11
RAID support	Yes
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	5
Number of SATA III connectors	4
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2x2 connectors	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
S/PDIF out port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	2
WiFi-AP antenna jack	1
Bluetooth	Yes
Bluetooth version	5.4
Ethernet interface type	5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna included	Yes

Physical

272.72 €
