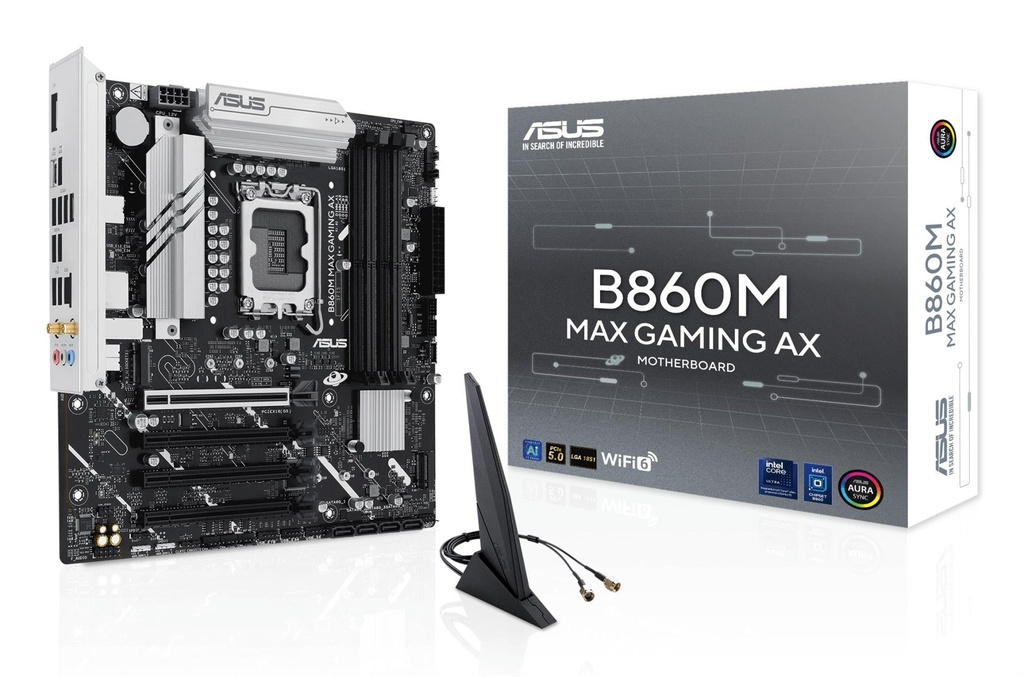

Mainboard | ASUS Intel B860 Express LGA1851 Memory DDR5 B860MMAXGAMINGAX

General

Summary	ASUS B860M MAX GAMING AX. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax)
Audio output channels	7.1 channels
Component for	PC
Cooling type	Passive
Power source type	ATX
ECC сompatibility	ECC & Non-ECC
RAID levels	0/1/10/5
Line-in	Yes
Microphone in	Yes
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
Cables included	SATA
Screws included	Yes
Quick installation guide	Yes
Model	B860M MAX GAMING AX

Display

Performance

Motherboard chipset	Intel B860
Motherboard chipset family	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
CPU fan connector	Yes
Number of CPU fan connectors	1

Memory & storage

Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	8666 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	7
Supported storage drive interfaces	PCI Express 4.0,PCI Express 5.0
Supported storage drive types	HDD & SSD
Number of RGB LED pin headers	3
RGB LED pin header	Yes
Number of M.2 (M) slots	3
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
BIOS memory size	256 Mbit

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11
RAID support	Yes
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	4
Number of EPS power connectors (8-pin)	1
Number of SATA III connectors	4
Number of water pump connectors	1
S/PDIF out connector	Yes
TPM connector	Yes
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2x2 Type-C ports quantity	1
WiFi-AP antenna jack	2
Bluetooth	Yes
Bluetooth version	5.3
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna included	Yes

Physical

156.11 €
