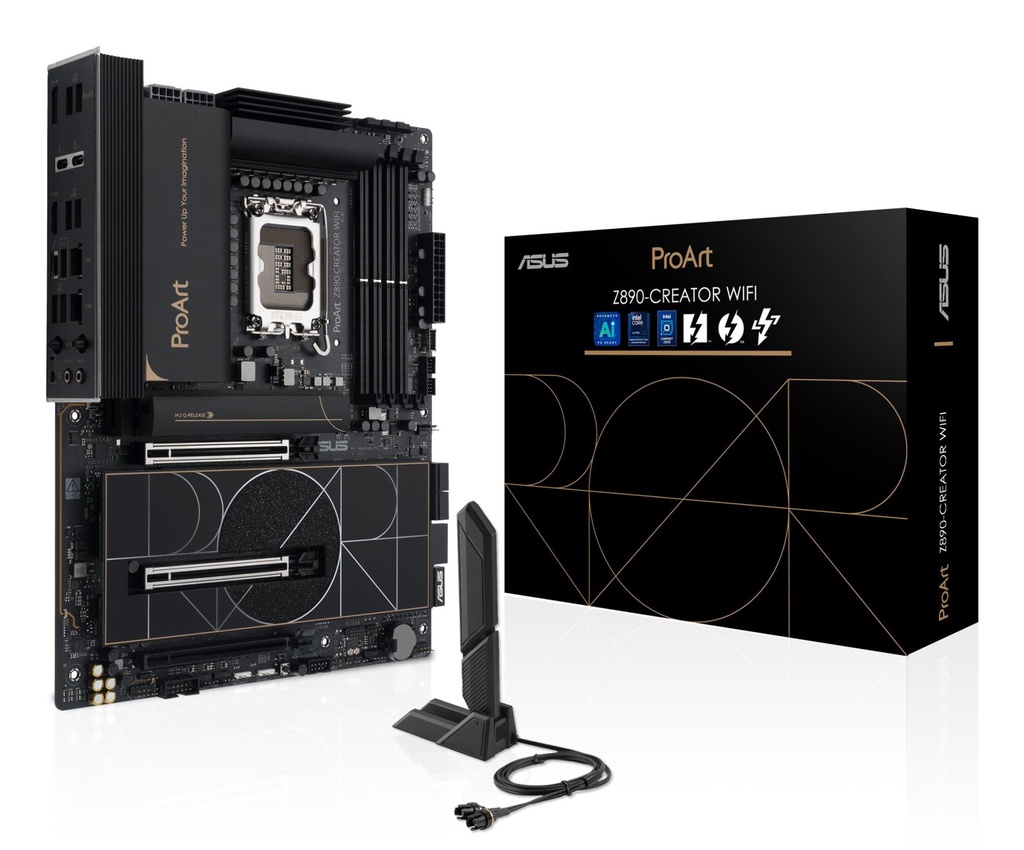

Mainboard | ASUS Intel Z890 LGA1851 Memory DDR5 PROARTZ890-CREATORWIFI

General

Audio chip	Realtek ALC1220P
Audio output channels	7.1 channels
Component for	PC
ECC сompatibility	Non-ECC
RAID levels	0/1/10/5
Number of RGB LED pin headers	3
Number of temperature sensor headers	1
RGB LED pin header	Yes
Headphone outputs	1
Line-in	Yes
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	4.0
4th M.2 highest PCI Express generation	4.0
5th M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
Clear CMOS button	Yes
Cables included	SATA
Model	ProArt Z890-CREATOR WIFI

Display

Performance

Motherboard chipset	Intel Z890
Motherboard chipset family	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
On-board graphics card	No
CPU fan connector	Yes
Number of CPU fan connectors	2

Memory & storage

Maximum internal memory	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	9066 MHz
Supported memory clock speeds	9066 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	9
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	5
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
BIOS memory size	256 Mbit

Battery & charging

Power source type	ATX

Connectivity

RAID support	Yes
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	5
Number of COM connectors	1
Number of EPS power connectors (8-pin)	2
Number of SATA III connectors	4
Number of water pump connectors	1
TPM connector	Yes
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt ports quantity	3
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
WiFi-AP antenna jack	2
Bluetooth	Yes
Bluetooth version	5.4
Ethernet interface type	10 Gigabit Ethernet/2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna included	Yes

Physical

427.67 €

Condition	Brand new
Brand	ASUS
