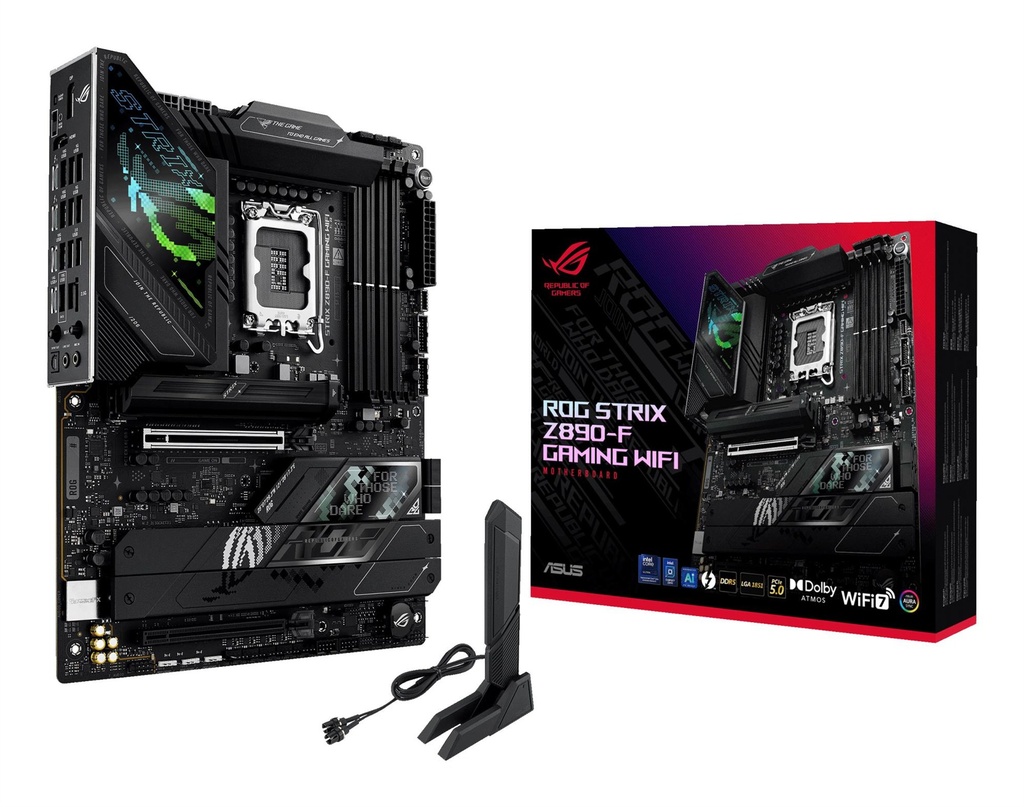

Mainboard | ASUS Intel Z890 LGA1851 Memory DDR5 ROGSTRIXZ890-FGAMWIFI

General

Display

Front panel audio connector	Yes
DisplayPorts quantity	1

Performance

Motherboard chipset	Intel Z890
Motherboard chipset family	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
On-board graphics card	No
CPU fan connector	Yes

Memory & storage

Maximum internal memory	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	8600 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	9
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	5
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS memory size	256 Mbit

Connectivity

Windows operating systems supported	Windows 11
RAID support	Yes
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	5
Number of SATA III connectors	4
Thunderbolt headers	1
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
S/PDIF out port	Yes
Thunderbolt ports quantity	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Bluetooth	Yes
Bluetooth version	5.4
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes

Physical

284.62 €
