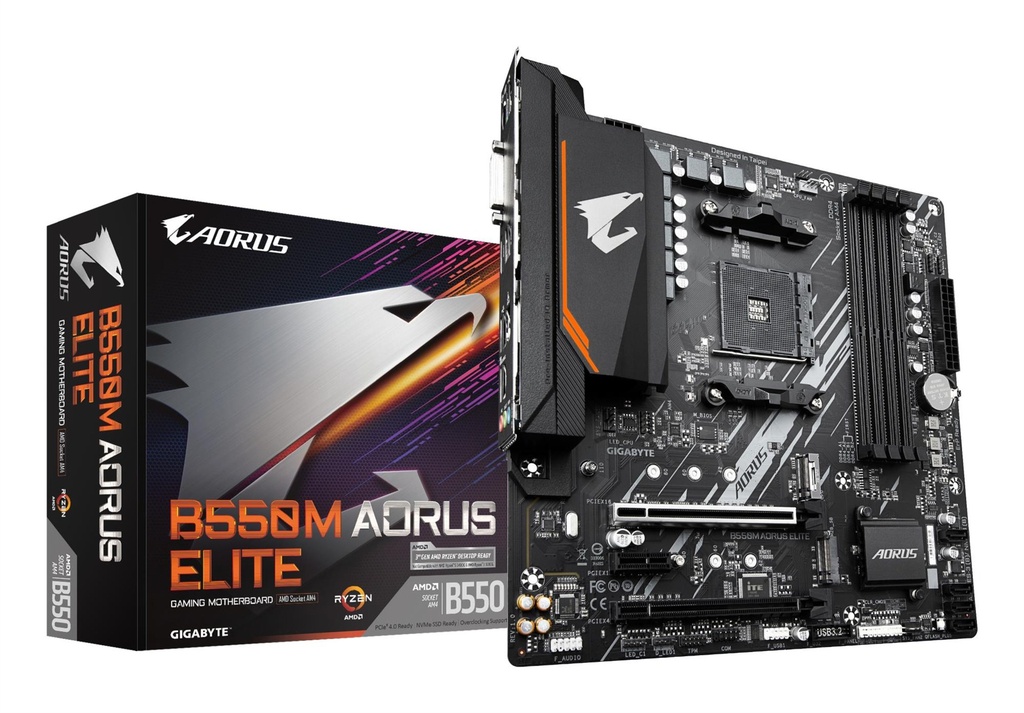

Mainboard | Gigabyte AMD B550 Socket AM4 Micro ATX RAM DDR4-SDRAM B550M Aorus Elite 1.3

General

Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Component for	PC
Cooling type	Passive
PC health monitoring	Fan/Temperature/Voltage
ECC сompatibility	ECC & Non-ECC
RAID levels	0/1/10
DirectX version	12.0
HDCP	Yes
Number of RGB LED pin headers	5
RGB LED pin header	Yes
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
1st M.2 highest PCI Express generation	4.0
2nd M.2 highest PCI Express generation	3.0
ACPI version	5.0
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
System Management BIOS (SMBIOS) version	2.7
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included	Yes
Model	B550M AORUS ELITE 1.3

Display

Performance

Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Maximum number of SMP processors	1
Processor manufacturer	AMD
Processor socket	Socket AM4
Supported processor sockets	Socket AM4
CPU fan connector	Yes
Number of CPU fan connectors	1

Memory & storage

Maximum internal memory	128 GB
Maximum internal memory per slot	32 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	4733 MHz
Supported memory clock speeds	2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Supported memory types	DDR4-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	6
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	128 Mbit

Battery & charging

Power source type	ATX
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11 x64
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of SATA III connectors	4
Number of water pump connectors	2
Serial port headers	1
TPM connector	Yes
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
DVI-D ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
PS/2 ports quantity	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Wi-Fi	No
Desktop Management Interface (DMI) version	2.7

Physical

74.36 €

Condition	Brand new
Brand	Gigabyte
