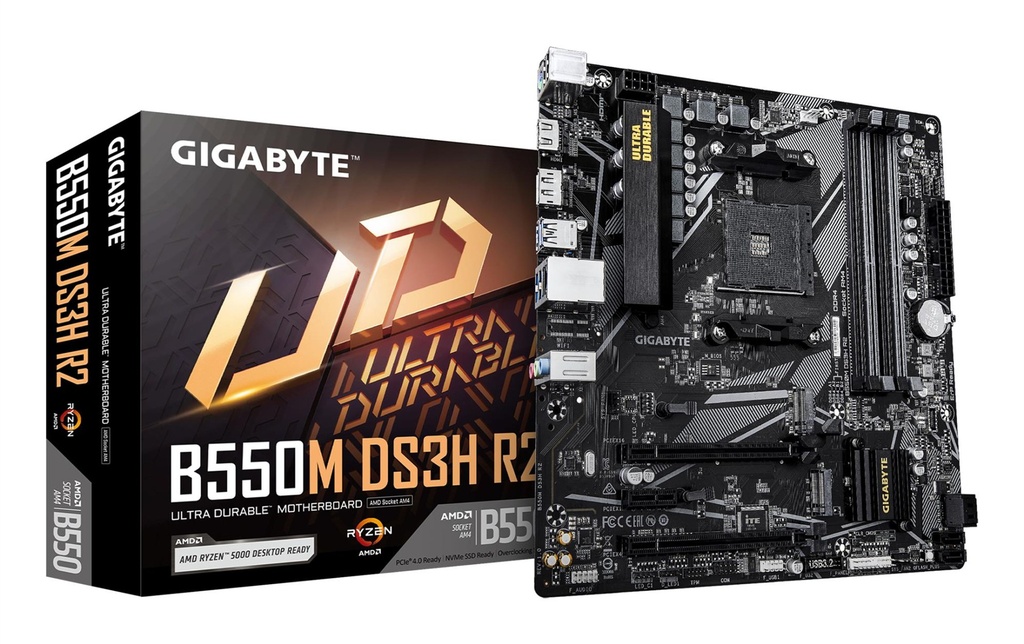

Mainboard | Gigabyte AMD B550 Socket AM4 Micro ATX RAM DDR4-SDRAM B550M DS3H R2

General

Summary	GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Audio chip	Realtek ALC1220-VB
Audio output channels	7.1 channels
Component for	PC
Cooling type	Passive
PC health monitoring	Fan/Temperature/Voltage
Power source type	ATX
ECC сompatibility	ECC & Non-ECC
RAID levels	0/1/10
DirectX version	12.0
HDCP	Yes
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
1st M.2 highest PCI Express generation	4.0
2nd M.2 highest PCI Express generation	3.0
ACPI version	5.0
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
System Management BIOS (SMBIOS) version	2.7
Products per shipping (inner) case	1 pc(s)
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included	Yes
Model	B550M DS3H R2

Display

Performance

Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Processor manufacturer	AMD
Processor socket	Socket AM4
Supported processor sockets	Socket AM4
CPU fan connector	Yes
Number of CPU fan connectors	1

Memory & storage

Maximum internal memory	128 GB
Maximum internal memory per slot	32 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	4733 MHz
Supported memory clock speeds	2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Supported memory types	DDR4-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	6
Supported storage drive interfaces	M.2,PCI Express 3.0,PCI Express 4.0,SATA III
Supported storage drive types	HDD & SSD
Number of RGB LED pin headers	5
RGB LED pin header	Yes
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	128 Mbit

Battery & charging

Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11 x64
RAID support	Yes
Parallel processing technology support	Not supported
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of SATA III connectors	4
Serial port headers	1
TPM connector	Yes
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
PS/2 ports quantity	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Wi-Fi	No
Desktop Management Interface (DMI) version	2.7

Physical

80.16 €

Condition	Brand new
Brand	Gigabyte
