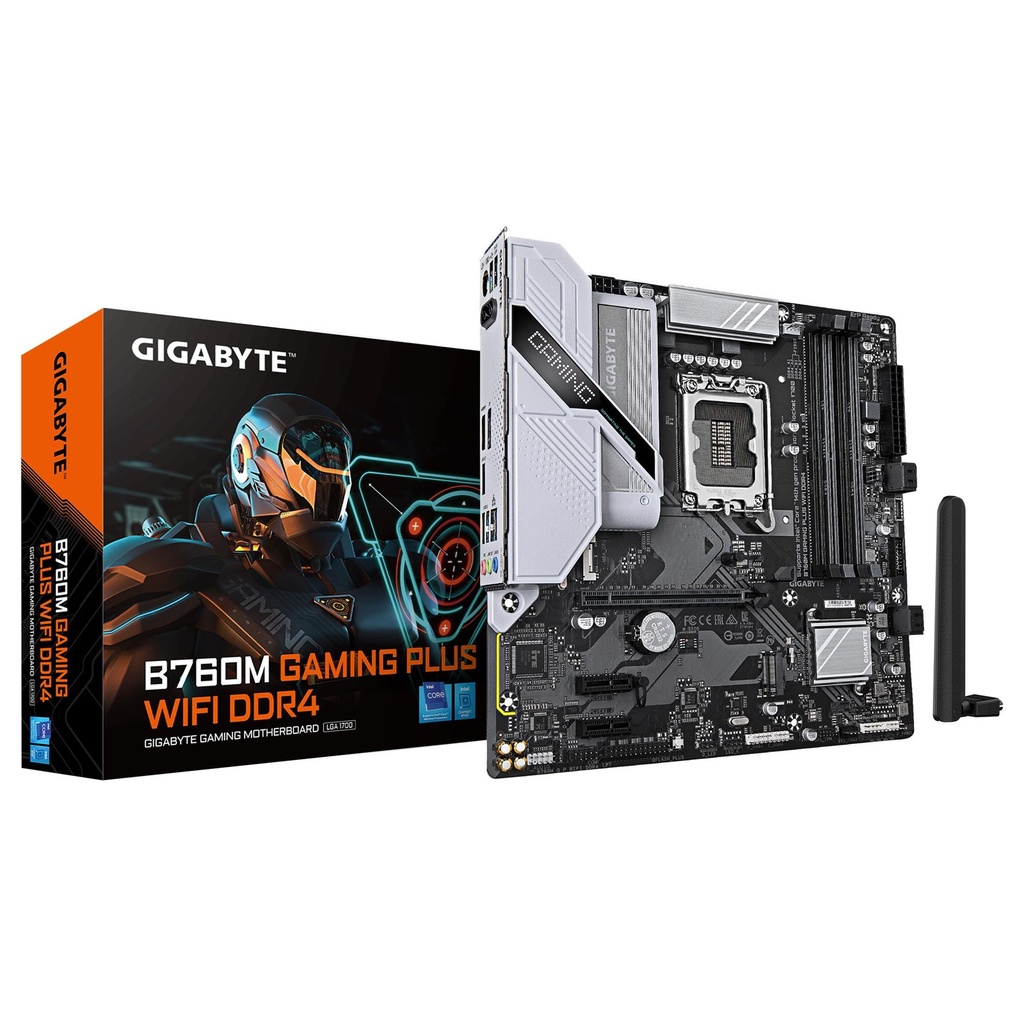

Mainboard | Gigabyte B760M GAMING PLUS WIFI DDR4 (REV. 1.1)

General

Summary	GIGABYTE B760M GAMING PLUS WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Component for	PC
PC health monitoring	Fan/Temperature/Voltage/Water cooling
Power source type	ATX
ECC сompatibility	ECC & Non-ECC
RAID levels	0/1/10/5
DirectX version	12.0
HDCP	Yes
Headphone outputs	1
Line-in	Yes
1st M.2 highest PCI Express generation	4.0
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
System Management BIOS (SMBIOS) version	2.7
Products per shipping (inner) case	1 pc(s)
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included	Yes
Model	GIGABYTE B760M GAMING PLUS WIFI DDR4 (REV. 1.1)

Display

Performance

Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Compatible processor series	Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
Processor manufacturer	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
CPU fan connector	Yes
Number of CPU fan connectors	1

Memory & storage

Maximum internal memory supported by processor	128 GB
Maximum internal memory	128 GB
Maximum internal memory per slot	32 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	5333 MHz
Supported memory clock speeds	2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Supported memory types	DDR4-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	6
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of RGB LED pin headers	2
RGB LED pin header	Yes
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	128 Mbit

Battery & charging

Battery capacity	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11 x64
RAID support	Yes
Parallel processing technology support	Not supported
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	3
Number of EPS power connectors (8-pin)	1
Number of SATA III connectors	4
Parallel connector	Yes
S/PDIF out connector	Yes
Serial port headers	1
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
PS/2 ports quantity	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
WiFi-AP antenna jack	2
Bluetooth	Yes
Bluetooth version	5.3
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
WLAN controller model	Realtek RTL8851BE
Desktop Management Interface (DMI) version	2.7
Antenna included	Yes

Physical

99.99 €
