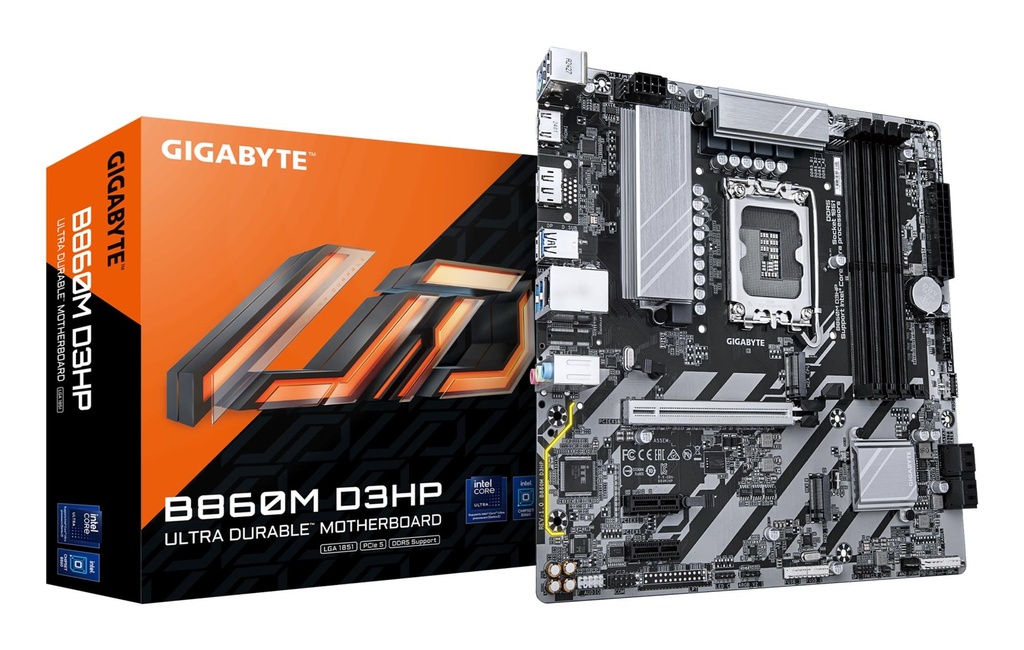

Mainboard | Gigabyte Intel B860 Express LGA1851 Memory DDR5 B860MD3HP1.0

General

Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Component for	PC
Cooling type	Passive
PC health monitoring	Fan/Temperature/Voltage/Water cooling
ECC сompatibility	ECC & Non-ECC
RAID levels	0/1/10/5
DirectX version	12.0
HDCP	Yes
Number of RGB LED pin headers	3
RGB LED pin header	Yes
Headphone outputs	1
Line-in	Yes
1st M.2 highest PCI Express generation	4.0
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
System Management BIOS (SMBIOS) version	2.7
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included	Yes
Model	B860M D3HP

Display

Performance

Motherboard chipset	Intel B860
Motherboard chipset family	Intel
Compatible processor series	Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
CPU fan connector	Yes
Number of CPU fan connectors	2

Memory & storage

Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	9066 MHz
Supported memory clock speeds	5600/6400/9066 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	6
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
BIOS memory size	256 Mbit

Battery & charging

Power source type	ATX
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11 x64
RAID support	Yes
Parallel processing technology support	Not supported
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of SATA III connectors	4
Number of water pump connectors	2
Serial port headers	1
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
PS/2 ports quantity	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Wi-Fi	No
Desktop Management Interface (DMI) version	2.7

Physical

119.00 €
