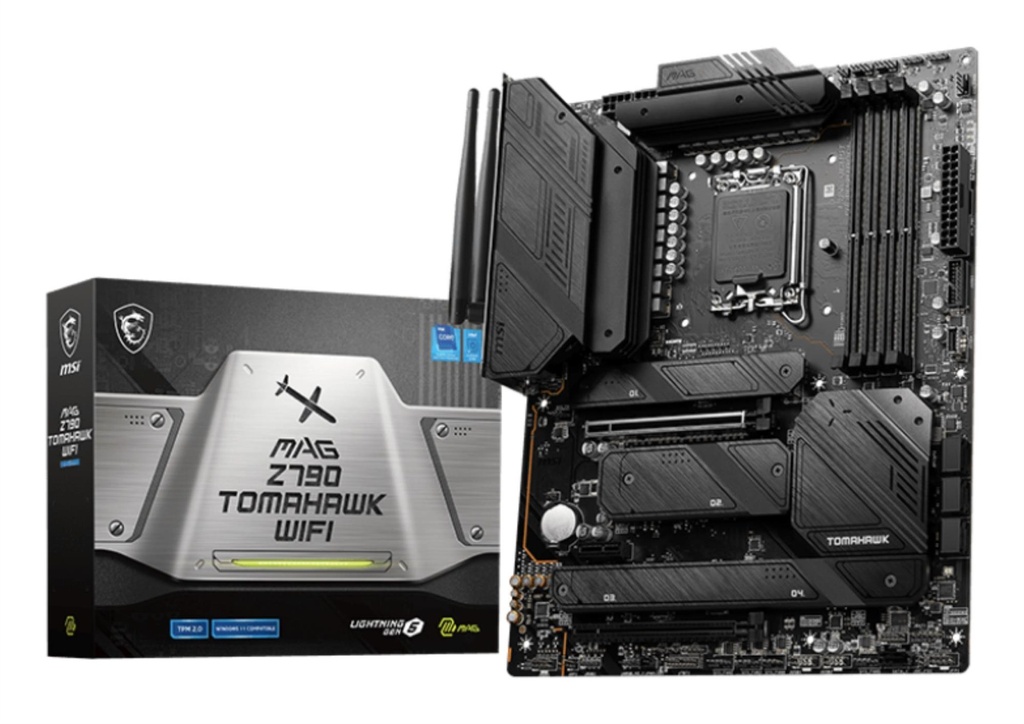

Mainboard | MSI Intel Z790 LGA1700 Memory DDR5 MAGZ790TOMAHAWKWIFI

General

Audio output channels	7.1 channels
Component for	PC
ECC сompatibility	Non-ECC
RAID levels	0/10/5
RGB LED pin header	Yes
ACPI version	6.4
BIOS type	UEFI AMI
System Management BIOS (SMBIOS) version	3.5
Cables included	SATA
Model	MAG Z790 TOMAHAWK WIFI

Display

Performance

Motherboard chipset	Intel Z790
Motherboard chipset family	Intel
Compatible processor series	Intel® Celeron®/Intel® Pentium® Gold
Processor manufacturer	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
CPU fan connector	Yes

Memory & storage

Maximum internal memory supported by processor	192 GB
Maximum internal memory	192 GB
Memory channels	Dual-channel
Number of memory slots	4
Supported memory clock speed (max)	7200 MHz
Supported memory clock speeds	4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2,PCI Express
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	4
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
BIOS memory size	256 Mbit

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11 x64
RAID support	Yes
Parallel processing technology support	Not supported
Chassis intrusion connector	Yes
Number of SATA III connectors	7
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
S/PDIF out port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Bluetooth	Yes
Bluetooth version	5.3
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Physical

182.55 €
