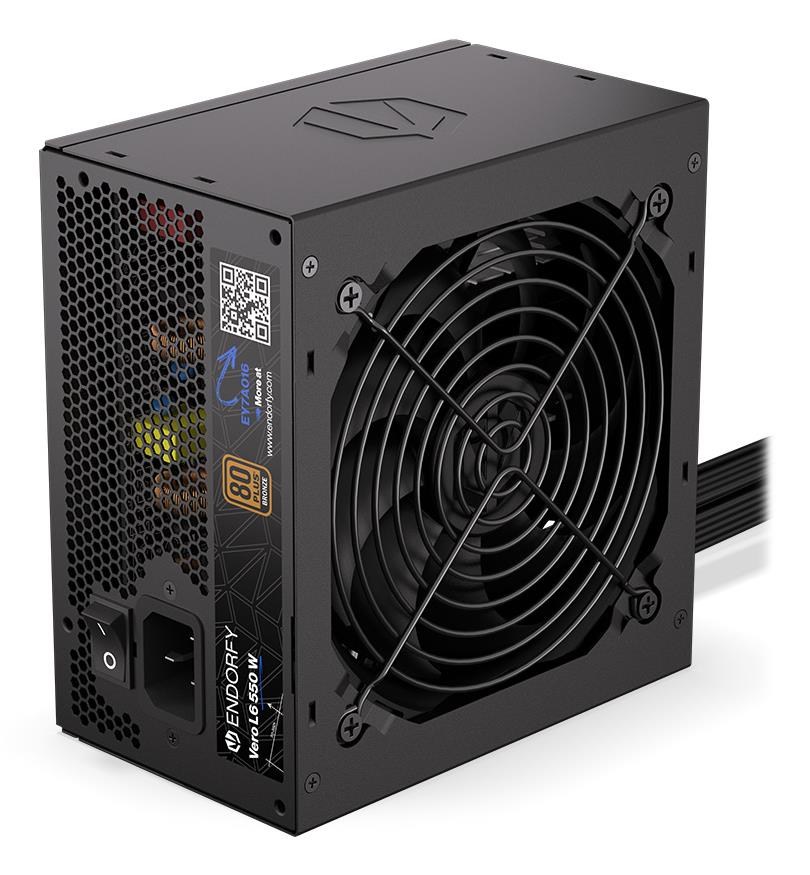

Power supply | Endorfy ATX PC 200 - 240 V EY7A016

General

Summary	ENDORFY Vero L6. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 57 cm, SATA power cable length: 500,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
AC input frequency	50 Hz
Combined power (+12V)	540 W
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	15 W
Input current	5 A
Max output current (+12V)	45 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Power Factor Correction (PFC) type	Active
Power protection features	Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
Total power	550 W
Cabling type	Non-Modular
80 PLUS certification	80 PLUS Bronze
ATX version	3.1
Bearing technology	FDB
Mean time between failures (MTBF)	80000 h
Purpose	PC
Cooling type	Active
Fan diameter	120 mm
Illumination	No
Number of fans	1 fan(s)
On/off switch	Yes
Cables included	AC
Compliance certificates	CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Manual	Yes
Doesn't contain	Cadmium/Lead/Mercury

Display

Units per Pallet	0
Units per Shipping Box	1

Battery & charging

AC input voltage	200 - 240 V
Power supply unit (PSU) form factor	ATX

Connectivity

ATX Power connector (24-pin)	Yes
EPS power connector (4+4 pin)	Yes
Motherboard power connector	24-pin ATX
Number of SATA power connectors	5
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	1

Physical

Motherboard power cable length	570 mm
Peripheral (Molex) power cable length	800 mm
SATA power cable length	500/800 mm
Product colour	Black
Depth	140 mm
Height	87 mm
Weight	1550 g
Width	150 mm

50.40 €
