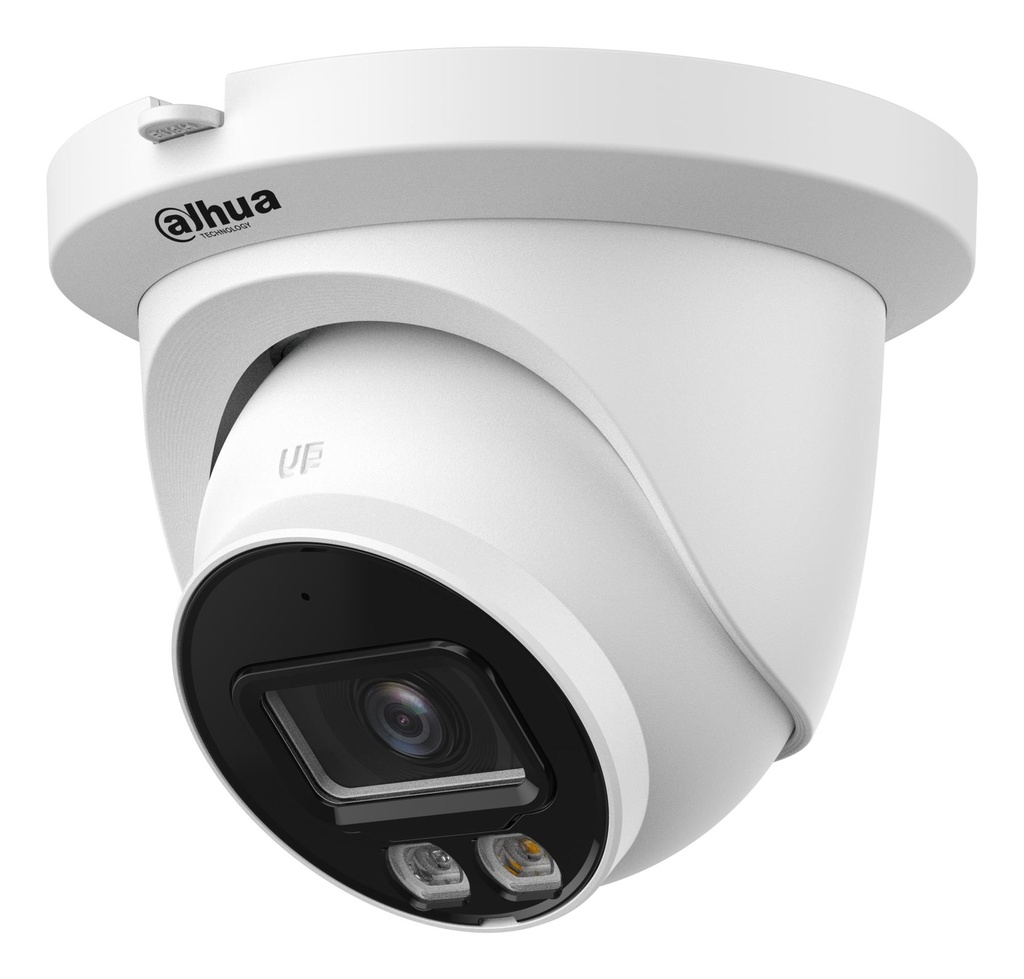

IP camera | Dahua 6MP Eyeball

IP camera | Dahua 6MP Eyeball

Specifikācija

General
International Protection (IP) codeIP67
Connectivity technologyWired
Day/night modeYes
TypeIP security camera
Angle of rotation360 °
Minimum illumination0.0007 lx
Number of Privacy masking areas4
Number of sensors1
Progressive scanYes
Sensor typeCMOS
Closest focusing distance1 m
Detect distance61.2 m
Fixed focal length2.8 mm
Fixed focusYes
Identify distance6.1 m
Maximum aperture number1.6
Observe distance24.5 m
Recognize distance12.2 m
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs2
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Noise reductionYes
Noise reduction technology3D noise reduction
Region of Interest (ROI) encodingYes
Video compression formatsH.264/H.264B/H.264H/H.265/M-JPEG
Video recordingYes
Video streamingYes
Built-in microphoneYes
Streaming methodMulticast
Card reader integratedYes
DC-in jackYes
Human and vehicle targets classificationYes
IP address filteringYes
MirrorYes
Video motion detectionYes
Operating temperature (T-T)-40 - 60 °C
Diameter121.9 mm
ManualYes
ModelIPC-HDW2649TM-S-IL-0280B
Display
Lens viewing angle, diagonal132 °
Maximum resolution3288 x 1850 pixels
Memory & storage
Frame rate30 fps
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
RAM capacity256 MB
ROM capacity128 MB
Network access storage (NAS)Yes
Storage temperature (T-T)-40 - 60 °C
Camera
Camera pan controlYes
Camera shutter speed1/3 - 1/100000 s
Camera tilt controlYes
Lens viewing angle, horizontal112 °
Lens viewing angle, vertical61 °
Total megapixels6 MP
Number of cameras1
Battery & charging
DC output voltage12
Power consumption (max)4.6 W
Power consumption (typical)2.5 W
Power source typeDC,PoE
Connectivity
Dynamic range120 dB
Placement supportedIndoor
Wide Dynamic Range (WDR)Yes
Pan range0 - 360 °
Tilt angle range0 - 78 °
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Audio formats supportedG.711 µ-law/G.711 A-law/G.726/PCM
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.1x
Quality of Service (QoS) supportYes
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P
Wi-FiNo
Ethernet LAN (RJ-45) ports1
Mobile operating systems supportedAndroid/iOS
Physical
Form factorTurret
Housing materialMetal/Plastic
Mounting typeCeiling/Wall/Pole
Product colourWhite
Optical sensor size1/2.7 "
Colour night vision distance30 m
Height99.1 mm
Weight530 g
150.65 € 150.65 €

  • Condition
  • Brand
Add to cart
Add to wishlist

Specifications

Condition Brand new
Brand Dahua
