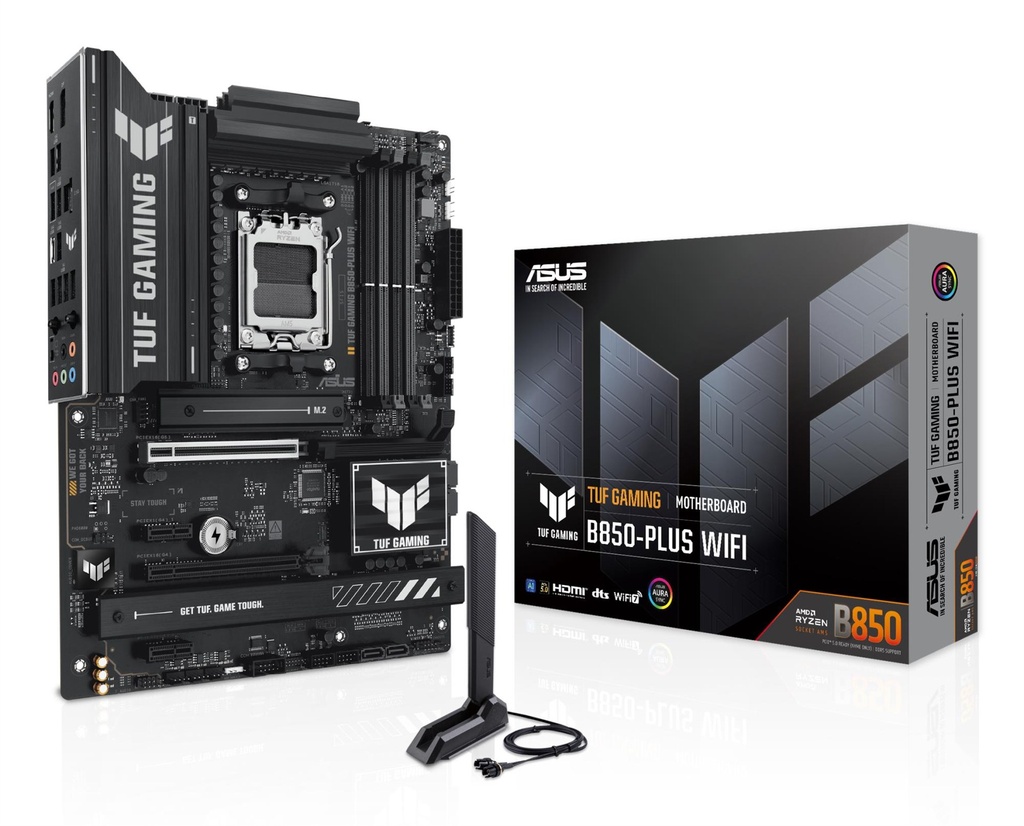

Mainboard | ASUS AMD B850 SAM5 Memory DDR5 TUFGAMINGB850-PLUSWIFI

General

Audio chip	Realtek ALC1220
Audio output channels	7.1 channels
Component for	PC
ECC сompatibility	ECC & Non-ECC
RAID levels	0/1/10/5
Number of RGB LED pin headers	3
RGB LED pin header	Yes
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
Clear CMOS button	Yes
Cables included	SATA
Quick installation guide	Yes
Model	TUF GAMING B850-PLUS WIFI

Display

Performance

Motherboard chipset	AMD B850
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
On-board graphics card	No
CPU fan connector	Yes
Number of CPU fan connectors	2

Memory & storage

Maximum internal memory	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	8000 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	7
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	3
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS memory size	256 Mbit

Battery & charging

Power source type	ATX

Connectivity

Windows operating systems supported	Windows 11
RAID support	Yes
Parallel processing technology support	Not supported
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	4
Number of COM connectors	1
Number of EPS power connectors (8-pin)	2
Number of SATA III connectors	4
Number of water pump connectors	1
Thunderbolt headers	1
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2x2 Type-C ports quantity	1
WiFi-AP antenna jack	2
Bluetooth	Yes
Bluetooth version	5.4
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna included	Yes

Physical

161.55 €

Condition	Brand new
Brand	ASUS
