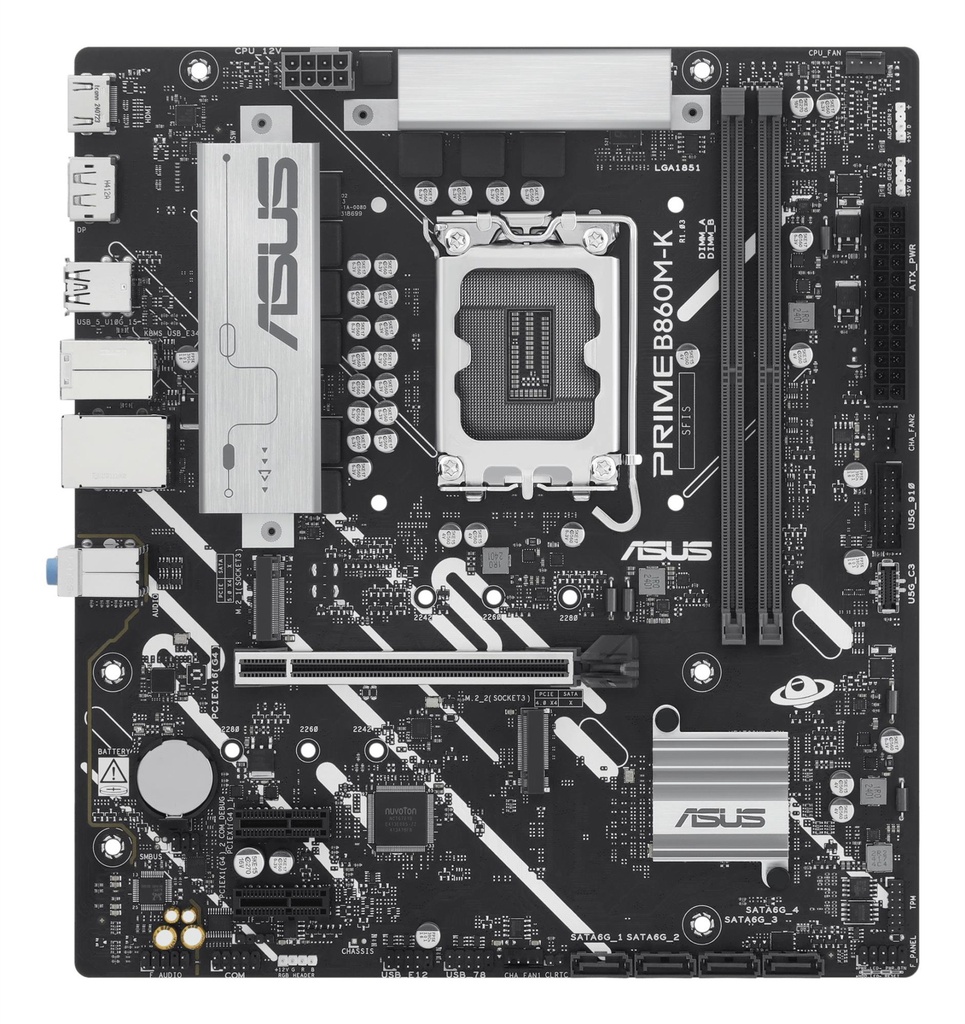

Mainboard | ASUS Intel B860 Express LGA1851 Memory DDR5 PRIMEB860M-K

General

Audio output channels	7.1 channels
Component for	PC
ECC сompatibility	Non-ECC
RAID levels	0/1/10/5
RGB LED pin header	Yes
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
Cables included	SATA
Model	PRIME B860M-K

Display

Performance

Motherboard chipset	Intel B860
Motherboard chipset family	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
CPU fan connector	Yes

Memory & storage

Maximum internal memory	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	6
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	256 Mbit

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11
RAID support	Yes
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Number of chassis fan connectors	2
Number of COM connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
PS/2 ports quantity	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Wi-Fi	No

Physical

110.73 €

Condition	Brand new
Brand	ASUS
