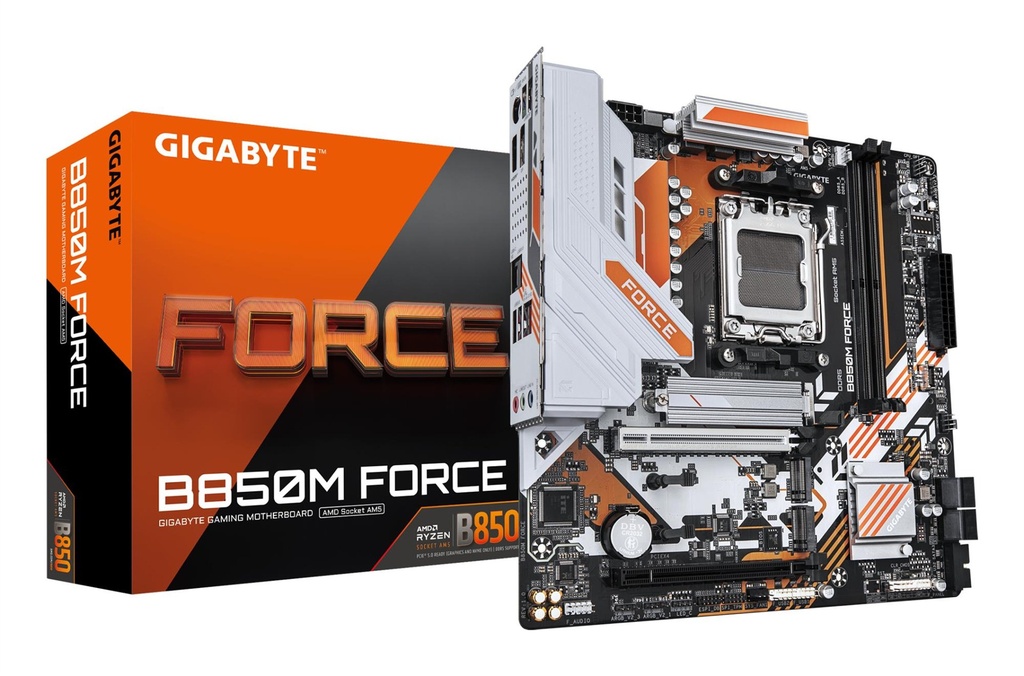

Mainboard | Gigabyte AMD B850 Socket AM5 Micro ATX RAM DDR5-SDRAM B850M Force (rev. 1.2)

General

Summary	GIGABYTE B850M FORCE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 9600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Component for	PC
Cooling type	Passive
PC health monitoring	Fan/Temperature/Voltage/Water cooling
Power source type	ATX
ECC сompatibility	Non-ECC
RAID levels	0/1/10/5
DirectX version	12.0
HDCP	Yes
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	4.0
ACPI version	5.0
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
System Management BIOS (SMBIOS) version	2.7
Products per shipping (inner) case	1 pc(s)
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version)
Screws included	Yes
Model	B850M FORCE (Rev. 1.2)

Display

Performance

Motherboard chipset	AMD B850
Motherboard chipset family	AMD
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
CPU fan connector	Yes
Number of CPU fan connectors	2

Memory & storage

Maximum internal memory	128 GB
Maximum internal memory per slot	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory clock speed (max)	9600 MHz
Supported memory clock speeds	4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9200/9600 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	7
Supported storage drive interfaces	M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types	HDD & SSD
Number of RGB LED pin headers	4
RGB LED pin header	Yes
Number of M.2 (M) slots	3
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS memory size	256 Mbit

Battery & charging

Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1

Connectivity

Windows operating systems supported	Windows 10 x64/Windows 11 x64
RAID support	Yes
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of SATA III connectors	4
Number of water pump connectors	2
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
PS/2 ports quantity	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8125
Wi-Fi	No
Desktop Management Interface (DMI) version	2.7

Physical

101.15 €
